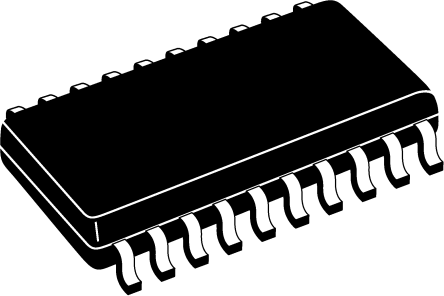

IDT74FCT3807APYGI image
Favorite
IDT74FCT3807APYGI image
Favorite
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description LVTTL SSOP Matte Tin (Sn) - annealed Clock clock buffer 5.3mm 0.024A 0.45ns 100MHz
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.028
≥1 USD $4.028
≥10 USD $3.30505
≥100 USD $3.2015
≥500 USD $3.09795
≥1000 USD $2.99535
Inventory: 5216
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Package / Case SSOP
Number of Pins 20

Technical

Published 2009
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 20
Qualification Status Not Qualified
Temperature Grade INDUSTRIAL
Number of Circuits 1
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Frequency (Max) 100MHz
Family FCT
Logic Function Clock
Output Characteristics 3-STATE
Input LVTTL
Max I(ol) 0.024 A
Prop. Delay@Nom-Sup 4.3 ns
Propagation Delay (tpd) 4.3 ns
Same Edge Skew-Max (tskwd) 0.45 ns
Number of True Outputs 10

Dimensions

Height 1.73mm
Length 7.2mm
Width 5.3mm

Compliance

RoHS Status RoHS Compliant
