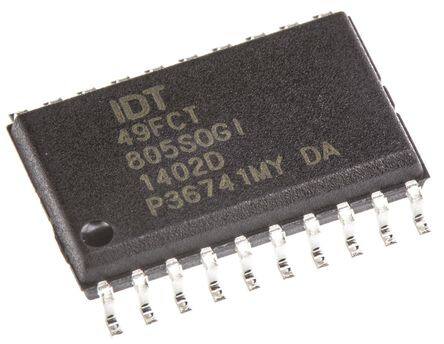

IDT49FCT805SOGI
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
LVTTL SOIC Matte Tin (Sn) - annealed Clock clock buffer 7.6mm 0.064A 0.7ns 80MHz
PDF
/
Buying Options
Total Price: USD $24.16
Unit Price: USD $24.16325
≥1 USD $24.16325
≥10 USD $19.8265
≥100 USD $19.2071
≥500 USD $18.5877
≥1000 USD $17.96735
Inventory: 241
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 20
Technical
Published 2009
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 5V
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 20
Qualification Status Not Qualified
Power Supplies 5V
Temperature Grade INDUSTRIAL
Number of Circuits 2
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Frequency (Max) 80MHz
Family FCT
Logic Function Clock
Output Characteristics 3-STATE
Input LVTTL
Max I(ol) 0.064 A
Prop. Delay@Nom-Sup 5.6 ns
Propagation Delay (tpd) 5.6 ns
Same Edge Skew-Max (tskwd) 0.7 ns
Number of True Outputs 5
Dimensions
Height 2.34mm
Length 12.8mm
Width 7.6mm
Compliance
RoHS Status RoHS Compliant
