ICS85408BGILF
RoHS
/

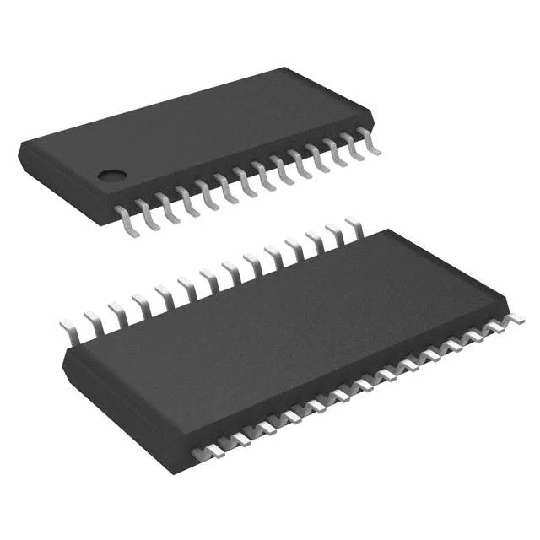

Package TSSOP
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
DUAL Not Qualified INDUSTRIAL Surface Mount clock driver 85C 700MHz 0.05ns 3.3V
PDF
/
Buying Options
Total Price: USD $15.21
Unit Price: USD $15.2076
≥1 USD $15.2076
≥10 USD $12.47825
≥100 USD $12.0878
≥500 USD $11.6983
≥1000 USD $11.30785
≥3000 USD $10.1384
Inventory: 2302
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4.4mm
Length 7.8mm
Technical
Number of True Outputs 8
Same Edge Skew-Max (tskwd) 0.05 ns
Propagation Delay (tpd) 2.4 ns
Logic IC Type LOW SKEW CLOCK DRIVER
Input LVDS
Output Characteristics 3-STATE
Family 85408
Frequency (Max) 700MHz
Number of Circuits 1
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 3.465V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G24
Pin Count 24
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.65mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
Number of Terminations 24
Pbfree Code yes
JESD-609 Code e3
Physical
Package / Case TSSOP
Mount Surface Mount
