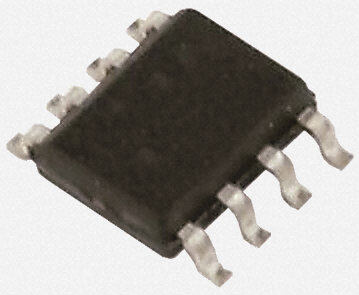

ICS651MILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
ALSO OPERATES AT 2.5V SUPPLY STANDARD SOIC Matte Tin (Sn) - annealed clock driver 4mm 0.006A 0.25ns 200MHz
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 17560
Minimum: 1
-
+
Technical Details
Technical
Temperature Grade INDUSTRIAL
Max Supply Voltage 2.625V
Min Supply Voltage 1.425V
Family 651
Logic Function Clock
Output Characteristics 3-STATE
Max I(ol) 0.006 A
Prop. Delay@Nom-Sup 5 ns
Propagation Delay (tpd) 5 ns
fmax-Min 200 MHz
Same Edge Skew-Max (tskwd) 0.25 ns
Number of True Outputs 4
Input Conditioning STANDARD
Power Supplies 1.5/2.5V
Qualification Status Not Qualified
Pin Count 8
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Supply Voltage 1.5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Additional Feature ALSO OPERATES AT 2.5V SUPPLY
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2005
Dimensions
Height 1.5mm
Length 5mm
Width 4mm
Compliance
RoHS Status RoHS Compliant
Physical
Number of Pins 8
Package / Case SOIC
Mount Surface Mount
