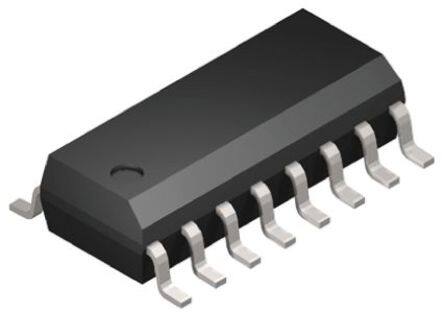

ICS580M-01ILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
MUX SOIC Matte Tin (Sn) - annealed LOW SKEW CLOCK DRIVER clock driver 3.9mm 0.012A 0.25ns 85C
PDF
/
Inventory: 9238
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 16
Technical
Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 16
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Clock Drivers
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 16
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Temperature Grade INDUSTRIAL
Max Supply Voltage 5.5V
Min Supply Voltage 2.5V
Quiescent Current 6mA
Family 580
Output Characteristics 3-STATE
Logic IC Type LOW SKEW CLOCK DRIVER
Max I(ol) 0.012 A
Prop. Delay@Nom-Sup 12 ns
Propagation Delay (tpd) 12 ns
Same Edge Skew-Max (tskwd) 0.25 ns
Number of True Outputs 2
Input Conditioning MUX
Dimensions
Height 1.5mm
Length 9.9mm
Width 3.9mm
Compliance
RoHS Status RoHS Compliant
