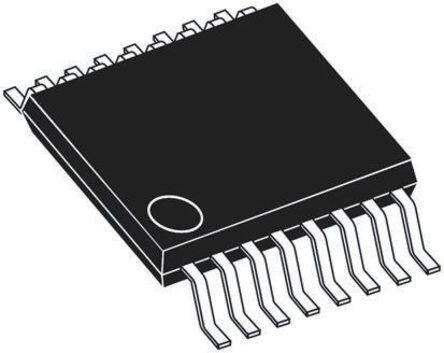

ICS552G-02ILN
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
MUX TSSOP Matte Tin (Sn) - annealed Clock clock buffer 4.5mm 0.035A 0.05ns 85C
PDF
/
Buying Options
Total Price: USD $27.65
Unit Price: USD $27.64975
≥1 USD $27.64975
≥10 USD $22.68695
≥100 USD $21.97825
≥500 USD $21.2686
≥1000 USD $20.5599
Inventory: 409
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TSSOP
Number of Pins 16
Technical
Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 2.5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 16
Qualification Status Not Qualified
Power Supplies 2.5/5V
Temperature Grade INDUSTRIAL
Max Supply Voltage 5.25V
Min Supply Voltage 2.375V
Family 552
Logic Function Clock
Output Characteristics 3-STATE
Max I(ol) 0.035 A
Propagation Delay (tpd) 5.5 ns
Same Edge Skew-Max (tskwd) 0.05 ns
Number of True Outputs 8
Input Conditioning MUX
Dimensions
Height 1.05mm
Length 5.1mm
Width 4.5mm
Compliance
RoHS Status RoHS Compliant
