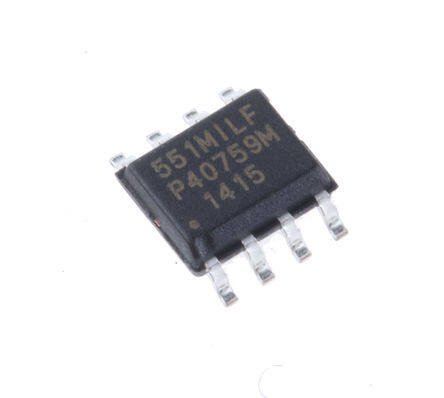

ICS551MILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
DUAL Not Qualified INDUSTRIAL Surface Mount clock buffer 85C 160MHz 0.25ns 0.035A
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.1477
≥1 USD $4.1477
≥10 USD $3.40385
≥100 USD $3.29745
≥500 USD $3.19105
≥1000 USD $3.08465
Inventory: 17982
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3.9mm
Length 4.9mm
Height 1.5mm
Technical
Input Conditioning STANDARD
Number of True Outputs 4
Same Edge Skew-Max (tskwd) 0.25 ns
fmax-Min 160 MHz
Max I(ol) 0.035 A
Logic IC Type LOW SKEW CLOCK DRIVER
Output Characteristics 3-STATE
Family 551
Min Supply Voltage 3V
Max Supply Voltage 5.5V
Temperature Grade INDUSTRIAL
Power Supplies 3.3/5V
Qualification Status Not Qualified
Pin Count 8
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Clock Drivers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 1999
Physical
Number of Pins 8
Package / Case SOIC
Mount Surface Mount
