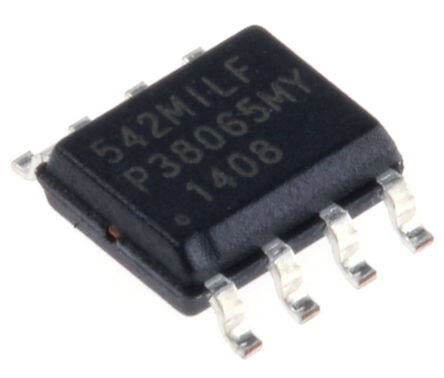

ICS542MILF
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Buffers, Drivers
Description
STANDARD SOIC Matte Tin (Sn) - annealed Clock clock driver 4mm 5V 0.5ns 85C
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 8
Technical
Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Prescaler/Multivibrators
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 8
Qualification Status Not Qualified
Temperature Grade INDUSTRIAL
Max Supply Voltage 5V
Min Supply Voltage 3V
Family 542
Logic Function Clock
Output Characteristics 3-STATE
Propagation Delay (tpd) 15 ns
Same Edge Skew-Max (tskwd) 0.5 ns
Number of True Outputs 2
Max Frequency@Nom-Sup 156000000Hz
Input Conditioning STANDARD
Dimensions
Height 1.5mm
Length 5mm
Width 4mm
Compliance
RoHS Status RoHS Compliant
