CDCU877ZQLT
RoHS
RoHS compliant

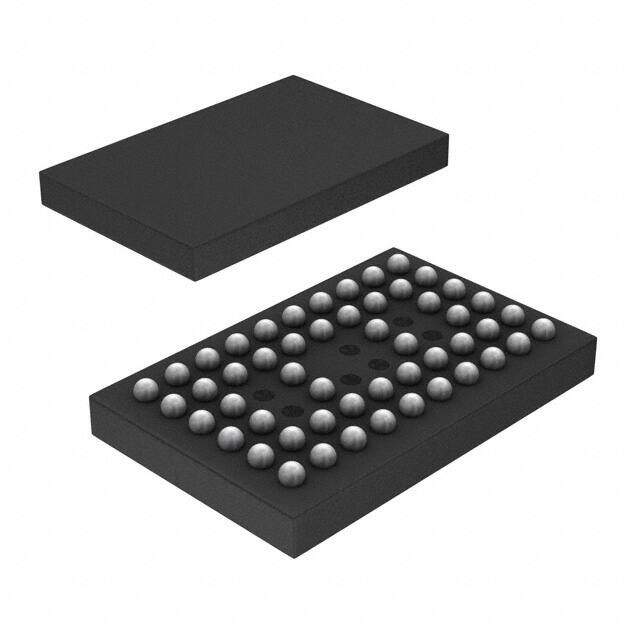

RoHS compliantPackage 52-VFBGA
Category Integrated Circuits (ICs) / Clock/Timing - Application Specific
Description
52-VFBGA Tin/Silver/Copper (Sn/Ag/Cu) Memory DDR2 CDCU877 application specific IC 4.5mm 500muA 1.8V 400MHz
PDF
/
Buying Options
Total Price: USD $66.44
Unit Price: USD $66.44395
≥1 USD $66.44395
≥10 USD $54.5186
≥100 USD $52.8143
≥500 USD $51.11095
≥1000 USD $49.4076
Inventory: 1155
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 52-VFBGA
Number of Pins 52
Weight 57.804678mg
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 52
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Clock Driver
Packing Method TR
Technology CMOS
Voltage - Supply 1.7V~1.9V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.65mm
Frequency 400MHz
Base Part Number CDCU877
Pin Count 52
Number of Outputs 10
Operating Supply Voltage 1.8V
Number of Circuits 1
Nominal Supply Current 500μA
Family 877
Output Characteristics 3-STATE
Input SSTL-18
Ratio - Input:Output 1:10
Logic IC Type PLL BASED CLOCK DRIVER
Max I(ol) 0.009 A
PLL Yes
Differential - Input:Output Yes/Yes
Main Purpose Memory, DDR2
Input Current 250μA
fmax-Min 340 MHz
Same Edge Skew-Max (tskwd) 0.035 ns
Dimensions
Height 1mm
Length 7mm
Width 4.5mm
Thickness 750μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
