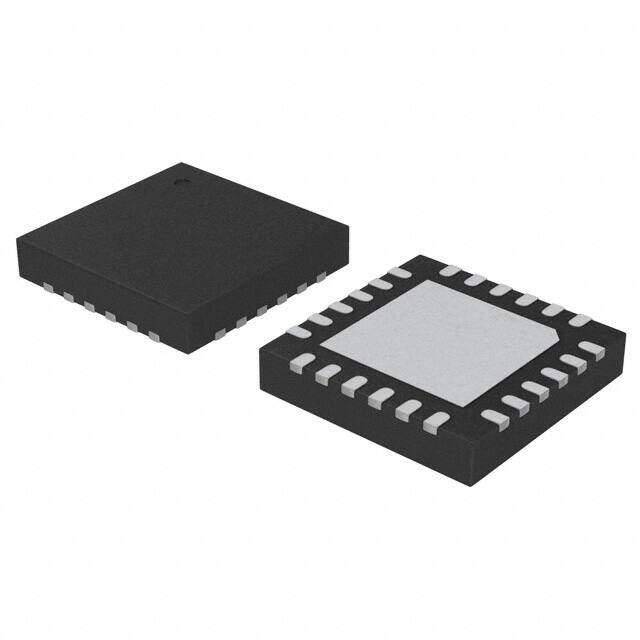

SI5338K-B-GM
RoHS
/
Package 24-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Clock/Timing - Application Specific
Description
24-VFQFN Exposed Pad Ethernet Fibre Channel PCI Express (PCIe) Telecom SI5338 MultiSynth? application specific IC 0.5mm 45mA 3.3V 710MHz
PDF
/
Buying Options
Total Price: USD $21.51
Unit Price: USD $21.5072
≥1 USD $21.5072
≥10 USD $19.83872
≥100 USD $18.947456
≥500 USD $16.941214
≥1000 USD $16.16105
≥3000 USD $15.380851
Inventory: 1161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-VFQFN Exposed Pad
Surface Mount YES
Number of Pins 24
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 1997
Series MultiSynth?
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 24
ECCN Code EAR99
Voltage - Supply 1.71V~3.63V
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Base Part Number SI5338
Output HCSL, HSTL, LVCMOS, LVDS, LVPECL, SSTL
Number of Outputs 4
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Number of Circuits 1
Operating Supply Current 45mA
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, PROCESSOR SPECIFIC
Supply Current-Max 60mA
Frequency (Max) 710MHz
Input CML, CMOS, HCSL, HSCL, HSTL, LVDS, LVPECL, SSTL, Crystal
Ratio - Input:Output 2:4
Primary Clock/Crystal Frequency-Nom 30MHz
PLL Yes
Differential - Input:Output Yes/Yes
Max Duty Cycle 55 %
Main Purpose Ethernet, Fibre Channel, PCI Express (PCIe), Telecom
Dimensions
Height Seated (Max) 0.9mm
Compliance
RoHS Status RoHS Compliant
