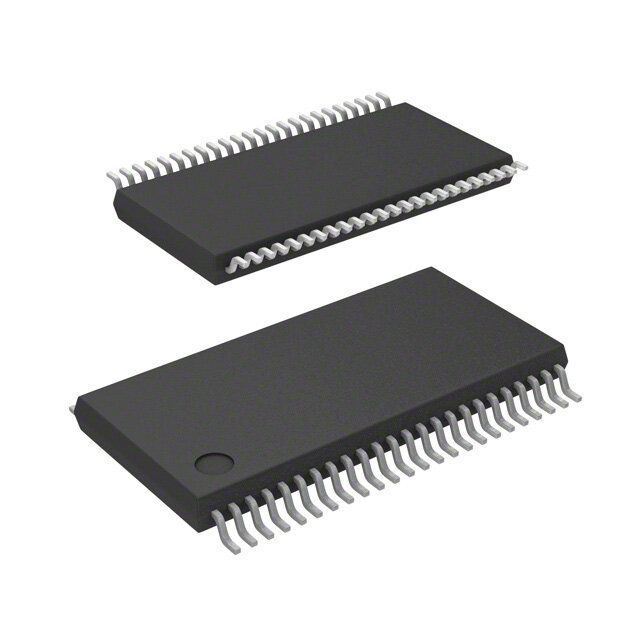

CY28800OXC image
Favorite
CY28800OXC image
Favorite

CY28800OXC

Silicon Labs
RoHS
/
Package 48-BSSOP (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Clock/Timing - Application Specific
Description 48-BSSOP (0.295 7.50mm Width) PCI Express (PCIe) SATA CPU CY28800 DUAL application specific IC 7.5057mm 3.3V 210MHz 0.25ns
PDF
/
Inventory: 9708
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 7.5057mm
Height Seated (Max) 2.794mm

Technical

Same Edge Skew-Max (tskwd) 0.05 ns
Main Purpose PCI Express (PCIe), SATA CPU
Propagation Delay (tpd) 0.25 ns
Differential - Input:Output Yes/Yes
PLL Yes
Ratio - Input:Output 1:8
Input Clock
Frequency (Max) 210MHz
Number of Circuits 1
Supply Voltage-Max (Vsup) 3.465V
Qualification Status Not Qualified
Number of Outputs 8
Pin Count 48
Output HCSL
Base Part Number CY28800
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.635mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3.135V~3.465V
Number of Terminations 48
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 1998
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Weight 50.008559mg
Number of Pins 48
Package / Case 48-BSSOP (0.295, 7.50mm Width)
Mounting Type Surface Mount
Mount Surface Mount
