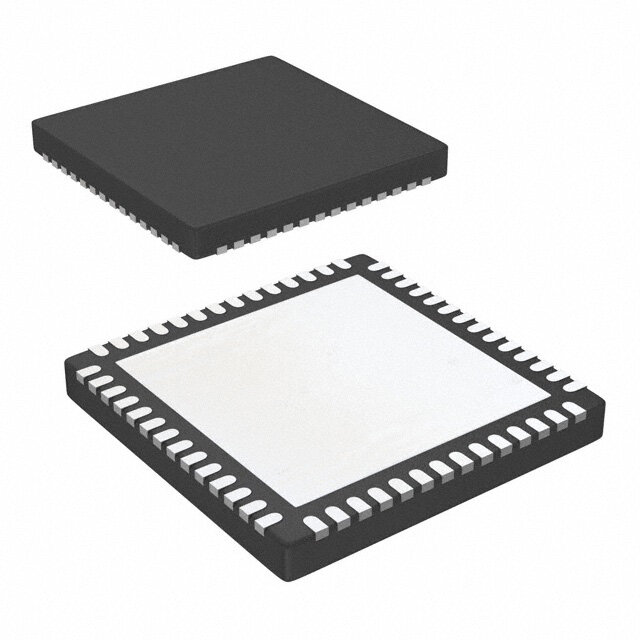

AD9554-1BCPZ
RoHS
RoHS compliant
RoHS compliantPackage 56-WFQFN Exposed Pad, CSP
Category Integrated Circuits (ICs) / Clock/Timing - Application Specific
Description
56-WFQFN Exposed Pad CSP Tin (Sn) Ethernet SONET/SDH Stratum AD9554 application specific IC 8mm 513mA 1.8V 941MHz
PDF
/
Buying Options
Total Price: USD $41.69
Unit Price: USD $41.6917
≥1 USD $41.6917
≥10 USD $34.20855
≥100 USD $33.1398
≥500 USD $32.07105
≥1000 USD $31.00135
Inventory: 1184
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 8mm
Length 8mm
Height Seated (Max) 0.8mm
Technical
Main Purpose Ethernet, SONET/SDH, Stratum
Max Duty Cycle 57 %
Telecom IC Type ATM/SONET/SDH SUPPORT CIRCUIT
Differential - Input:Output Yes/Yes
PLL Yes
Ratio - Input:Output 4:4
Input CMOS, LVDS
Frequency (Max) 942MHz
Operating Supply Current 513mA
Number of Circuits 1
Operating Supply Voltage 1.8V
Number of Outputs 4
Pin Count 56
Output HCSL, LVDS, LVPECL
Base Part Number AD9554
Time@Peak Reflow Temperature-Max (s) 30
Frequency 941MHz
Terminal Pitch 0.5mm
Supply Voltage 1.5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 1.4V~2.625V
Terminal Finish Tin (Sn)
Number of Terminations 56
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code no
JESD-609 Code e3
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 56
Package / Case 56-WFQFN Exposed Pad, CSP
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 8 Weeks
