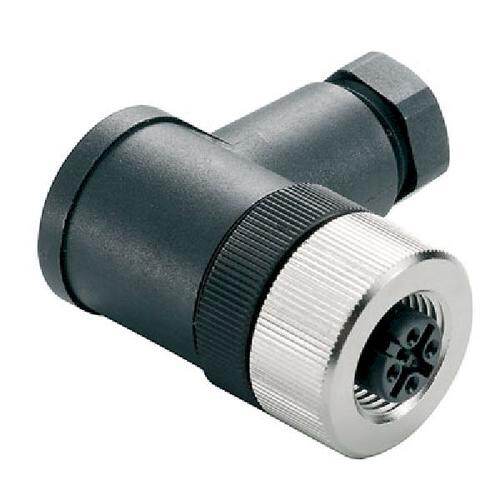

1925870000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Connector
PDF
/
Inventory: 1521
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SAI
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 12
Color Black, Silver
Applications Industrial Automation
Voltage - Rated 30V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1A
Shell Size - Insert M12-12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Wire/Cable Diameter 8 mm
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
