1864730000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

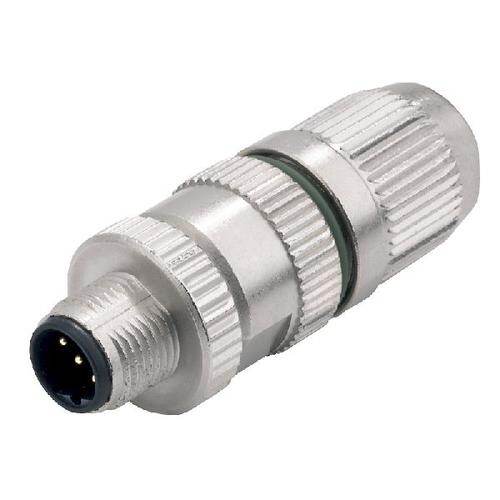

Circular Connector
PDF
/
Inventory: 6729
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Backshell Material, Plating Copper Zinc
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SAI
JESD-609 Code e3
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle, Male Pins
Number of Positions 3
Color Silver
Applications Industrial Automation
Voltage - Rated 32V
Fastening Type Threaded
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation B
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-3
Empty Shell NO
Backshell Type SOLID
Coupling Type SNAP
Cable Opening 0.276 ~ 0.346 (7.00mm ~ 8.80mm)
Wire/Cable Diameter 7 mm
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
