4-2271144-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

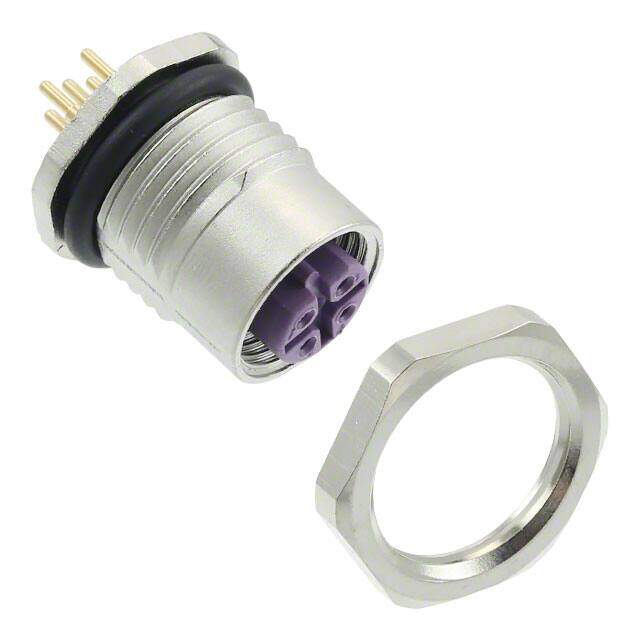

TE CONNECTIVITY 4-2271144-2 SENSOR CONNECTOR, RECEPTACLE, 5 POSITION, M12
PDF
/
Inventory: 4810
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Bronze, CuSn
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead
Shell Material Brass and Zinc Die Cast
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series M12
Feature Shielded
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Applications Automotive, Industrial
Gender Female
Voltage - Rated 125VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation B
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
ELV Compliant
Dimensions
Contact Finish Thickness - Mating 19.7μin 0.50μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings IP68
