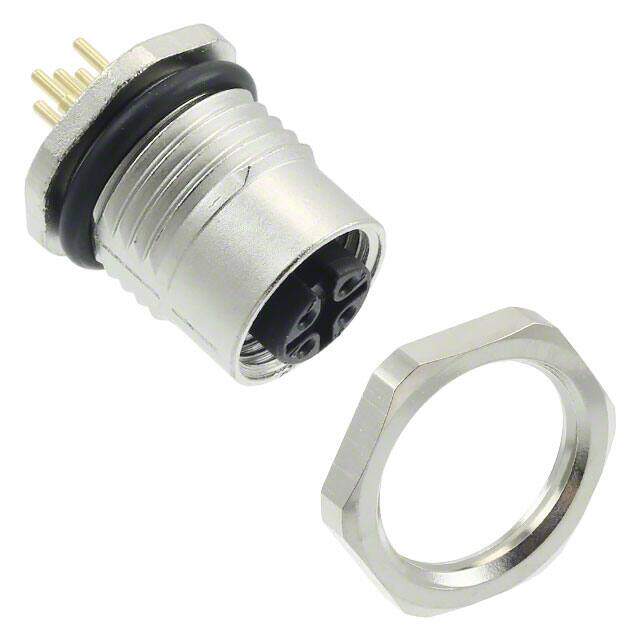

4-2271143-2 image
Favorite
4-2271143-2 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 5POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $6.85
Unit Price: USD $6.84792
≥1 USD $6.84792
≥10 USD $6.460303
≥100 USD $6.094622
≥500 USD $5.749641
≥1000 USD $5.424195
Inventory: 2291
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP68
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Contact Finish Thickness - Mating 19.7μin 0.50μm

Technical

ELV Compliant
Contact Gender Female
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 2A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 125VAC/DC
Gender Receptacle
Applications Automotive, Industrial
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series M12
Published 2014
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Feature Bulkhead
Mounting Type Panel Mount, Through Hole
Mount PCB, Through Hole
Contact Material Bronze

Supply Chain

Factory Lead Time 5 Weeks
