3-2271145-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

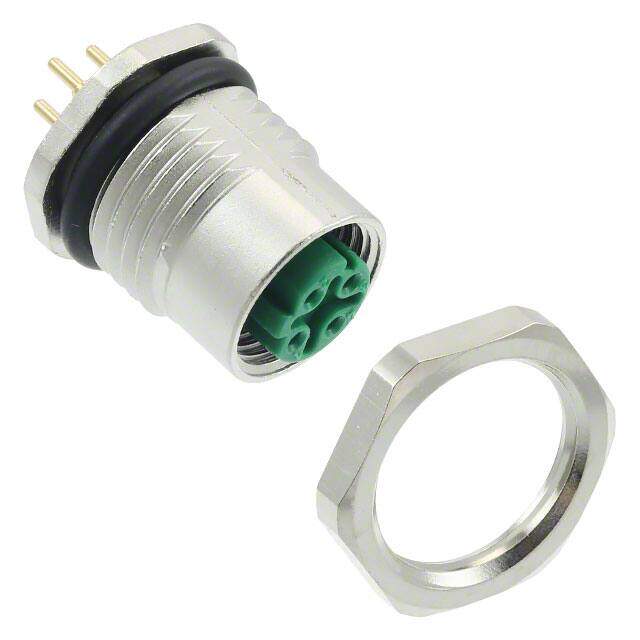

TE CONNECTIVITY 3-2271145-2. SENSOR CONNECTOR, RECEPTACLE, 4 POSITION, M12
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.456294
≥1 USD $5.456294
Inventory: 15
Minimum: 1
-
+
Technical Details
Physical
Contact Material Bronze
Mount PCB, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead
Shell Material Brass and Zinc Die Cast
Housing Material Brass
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2014
Series M12
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Applications Automotive, Industrial
Voltage - Rated 250VAC/DC
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
Orientation D
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Number of Contacts 5
Contact Gender Female
ELV Compliant
Dimensions
Contact Finish Thickness - Mating 19.7μin 0.50μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP67
