3-2271139-2
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

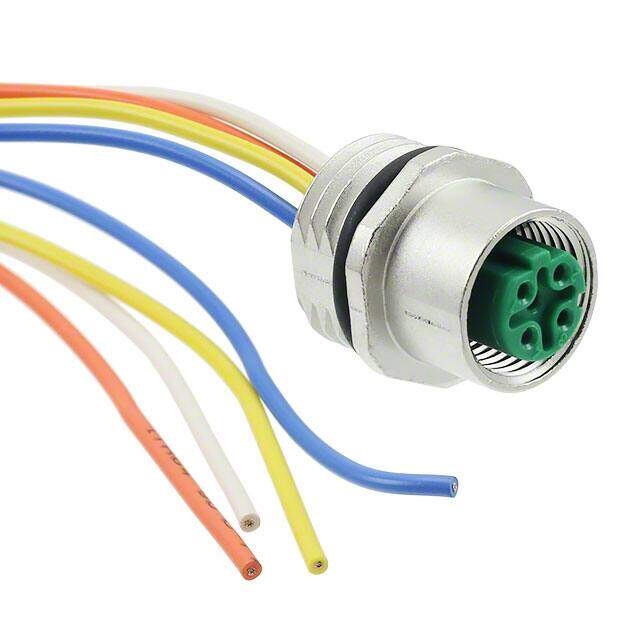

TE CONNECTIVITY 3-2271139-2. SENSOR CONNECTOR, RECEPTACLE, 4 POSITION, M12
PDF
/
Inventory: 9412
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Contact Finish Thickness - Mating 19.7μin 0.50μm
Technical
ELV Compliant
Contact Gender Female
Number of Contacts 5
Shell Size - Insert M12-4
Shell Finish Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation D
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Fastening Type Threaded
Voltage - Rated 250VAC/DC
Gender Female
Applications Automotive, Industrial
Color Silver
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series M12
Published 2014
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Zinc
Shell Material Zinc Die Cast
Number of Pins 4
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Bronze
