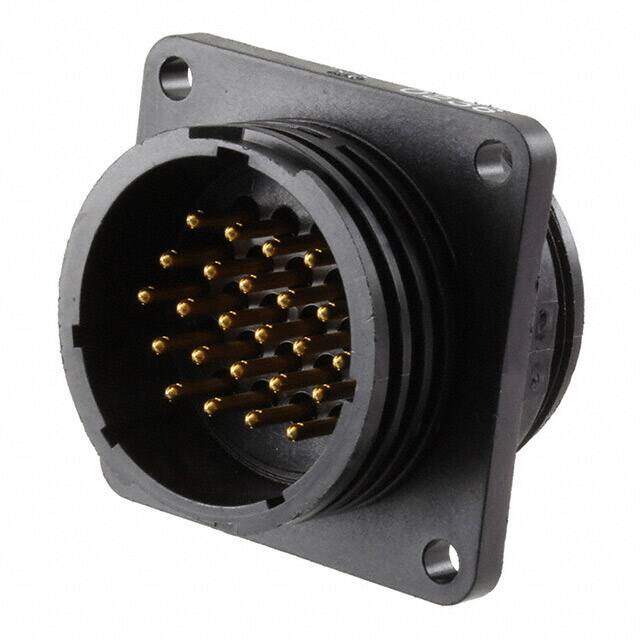

213780-2 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-24
PDF
/
Buying Options
Total Price: USD $150.08
Unit Price: USD $150.079424
≥1 USD $150.079424
≥10 USD $141.584356
≥100 USD $133.570156
≥500 USD $126.009576
≥1000 USD $118.876958
Inventory: 3922
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)

Physical

Contact Material Brass
Mount Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Flange
Shell Material Polyamide (PA), Nylon
Housing Material Nylon

Technical

Operating Temperature -55°C~105°C
Packaging Tray
Published 2007
Series CPC Series 1
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Male Pins
Number of Positions 24
Voltage - Rated 250VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 24
Orientation A
Depth 36.44mm
Current Rating 13A
Shell Size - Insert 23-24
Housing Color Black
Lead Length 5.59mm
Empty Shell NO
Operating Supply Voltage 250V
Backshell Type SOLID
ELV Compliant
Sealable No
Number of Power Positions 0
Insulation Diameter 2.54 mm
Mating Alignment With

Dimensions

Length 36.44mm
Plating Thickness 762 nm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
