2120954-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

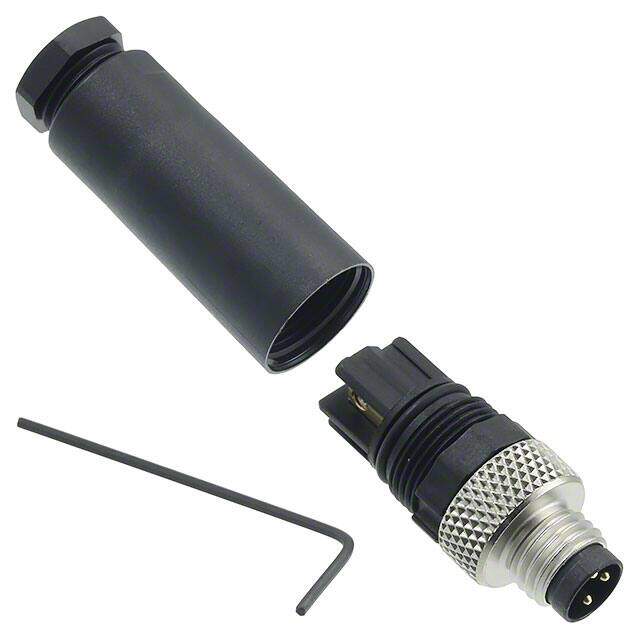

TE CONNECTIVITY 2120954-1. SENSOR CONNECTOR, PLUG, 3 POSITION, M8
PDF
/
Inventory: 4477
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Insert Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2014
Series M8
Feature Backshell
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 3
Color Black, Silver
Applications Automation Control, Industrial, Telecommunications
Voltage - Rated 60VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Shell Finish Nickel
Shell Size - Insert M8-3
Compliance
RoHS Status RoHS Compliant
