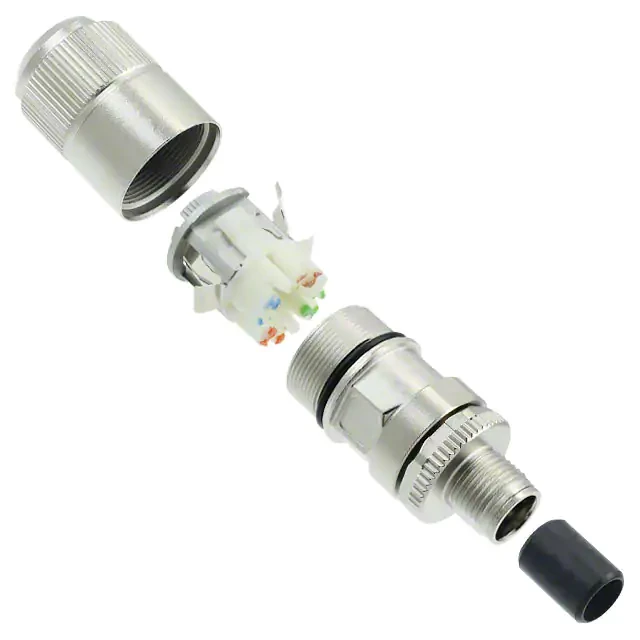

2120952-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 8POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $32.27
Unit Price: USD $32.269769
≥1 USD $32.269769
≥200 USD $12.488305
≥500 USD $12.049796
≥1000 USD $11.833168
Inventory: 8789
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable
Mounting Type Free Hanging (In-Line)
Number of Pins 8
Shell Material Zinc Die Cast
Housing Material Brass
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2004
Series M12
Feature Shielded
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 8
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Silver
Applications Automotive, Industrial
Gender Male
Voltage - Rated 50VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 0.5A
Orientation X
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 500mA
Shell Finish Nickel
Shell Size - Insert M12-8
Number of Contacts 8
Contact Gender Male
ELV Compliant
Dimensions
Diameter 20mm
Length 59mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP67
