2-2172093-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

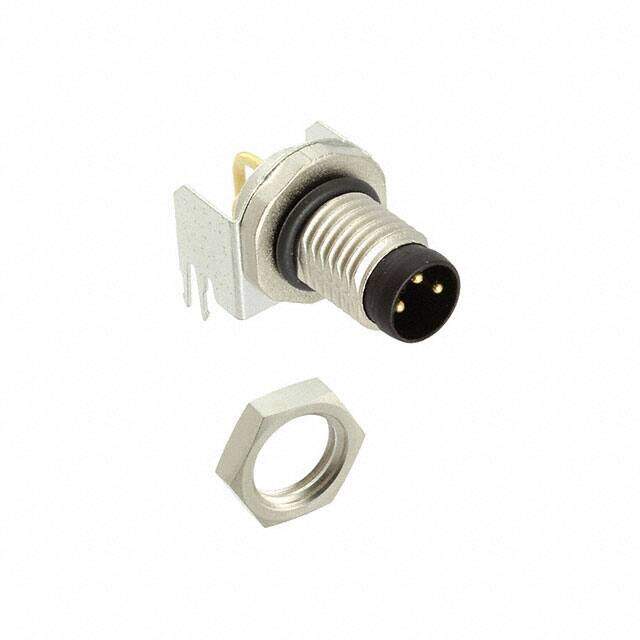

Conn M8 Circular M 3 POS Solder RA Thru-Hole 3 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $34.52
Unit Price: USD $34.5224
≥1 USD $34.5224
≥10 USD $28.49308
≥100 USD $26.48404
≥500 USD $25.0228
≥1000 USD $24.474894
Inventory: 156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead
Number of Pins 3
Insulation Material Polyamide
Shell Material Zinc Die Cast
Housing Material Metal
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2014
Series M8
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 3
Color Silver
Applications Automation Control, Industrial, Telecommunications
Gender Male
Voltage - Rated 60V
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-3
ELV Compliant
Plating Nickel
Number of Signal Positions 3
Preloaded Yes
Compliance
RoHS Status RoHS Compliant
