2-1445756-0
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

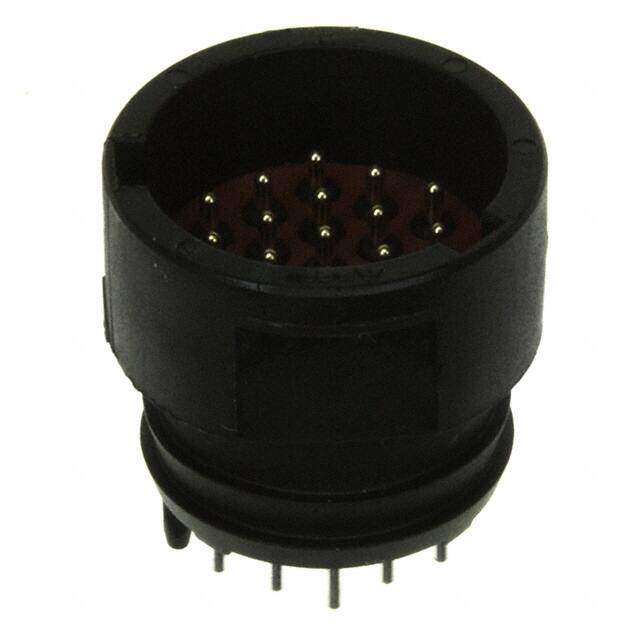

Standard Circular Connector 19 POS RECPT M13.5
PDF
/
Inventory: 957
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Not Applicable
Technical
Coupling Type SNAP
ELV Compliant
Backshell Type SOLID
Empty Shell NO
Housing Color Black
Contact Gender Male
Shell Size - Insert M13.5
Current Rating 2A
Reach Compliance Code unknown
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Keyed
Total Number of Contacts 19
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock
HTS Code 8536.69.40.20
Voltage - Rated 250V
Gender Receptacle
Number of Positions 19
Connector Type Receptacle, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Spring Probe
JESD-609 Code e3
Series Micro CPC
Published 2007
Packaging Tube
Operating Temperature 105°C Max
Physical
Shell Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Through Hole
Contact Material Brass
