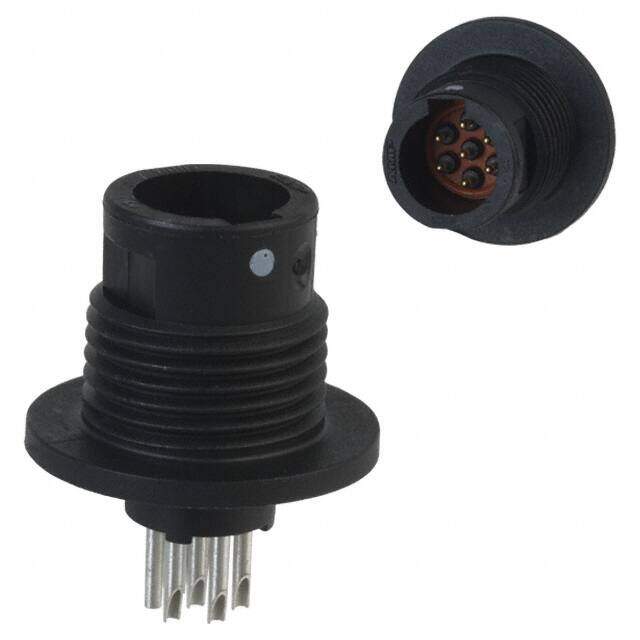

2-1445718-0
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT CPC 7POS PANEL SLD CUP
PDF
/
Inventory: 7987
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Not Applicable
RoHS Status RoHS Compliant
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Length 19.75mm
Technical
Number of Ports 1
ELV Compliant
Housing Color Black
Contact Gender Male
Number of Contacts 7
Shell Size - Insert M9.5
Current Rating 2A
Depth 6.48mm
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Keyed
Current Rating (Amps) 2A
Contact Finish - Mating Gold
Fastening Type Latch Lock
Voltage - Rated 250V
Gender Receptacle
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 7
Connector Type Receptacle, Male Pins
Termination Solder Cup
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Spring Probe
Series Micro CPC
Published 2002
Packaging Bulk
Operating Temperature 105°C Max
Physical
Housing Material Thermoplastic
Shell Material Thermoplastic
Insulation Material Plastic
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Brass
