1877852-2
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

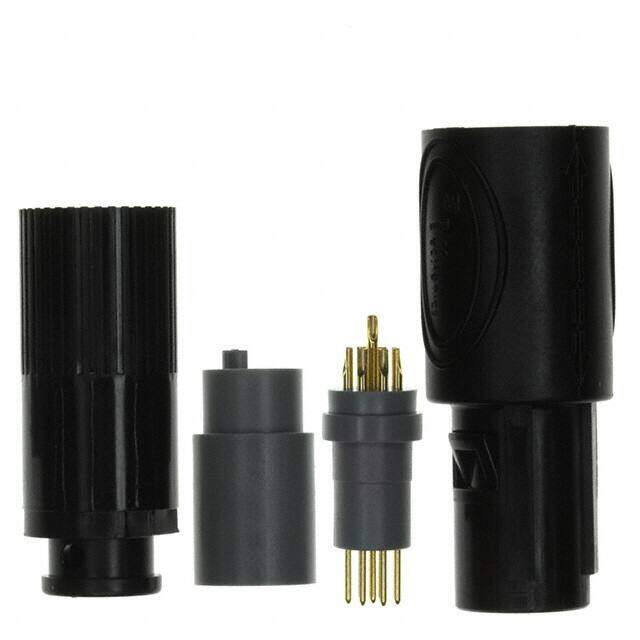

Standard Circular Connector PLUG 10P 80 DEG BLK 6.4 DIA
PDF
/
Inventory: 5617
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Technical
Feedthrough Type No
Durability Rating 2500 cycles
Assembly Length 35.15mm
Preloaded Yes
Wire/Cable Diameter 6.4 mm
Number of Signal Positions 10
Number of Power Positions 10
Wire/Cable Gauge 28 AWG
Number of Ports 1
Plating Thermoplastic
Max Voltage Rating (AC) 300V
ELV Compliant
Housing Color Black
Number of Contacts 10
Voltage - Rated AC 300V
Current Rating 3A
Shielding Unshielded
Orientation 80°
Current Rating (Amps) 3A
Contact Finish - Mating Gold
Fastening Type Latch Lock
Voltage - Rated 300VAC
Gender Male
Applications Medical
Color Black
Min Operating Temperature -58°C
Max Operating Temperature 338°C
Number of Positions 10
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Medical CPC
Published 2007
Packaging Bulk
Operating Temperature -50°C~170°C
Physical
Insert Material Polyphenylene Sulfide (PPS)
Housing Material Thermoplastic
Shell Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 60 Weeks
