1877066-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

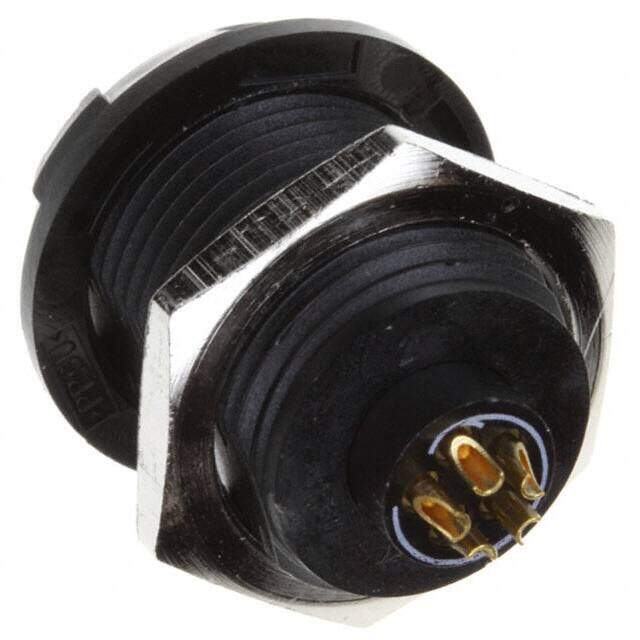

Standard Circular Connector RECEP 5P 80 DEG BLK
PDF
/
Inventory: 6602
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP50
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Panel Thickness 10mm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Length 22.7mm
Technical
Feedthrough Type No
Durability Rating 2500 cycles
Assembly Length 22.7mm
Preloaded Yes
Number of Signal Positions 5
Wire/Cable Gauge 22 AWG
Number of Ports 1
Max Voltage Rating (AC) 300V
ELV Compliant
Voltage - Rated AC 300V
Current Rating 7A
Ingress Protection IP50 - Dust Protected
Shielding Unshielded
Orientation 80°
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock
Voltage - Rated 300VAC
Gender Female
Applications Medical
Color Black
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Medical CPC
Published 2007
Packaging Bulk
Operating Temperature -50°C~170°C
Physical
Insert Material Polyphenylene Sulfide (PPS)
Shell Material Thermoplastic
Mounting Feature Bulkhead - Front or Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front, Panel, Rear Side Nut
Contact Material Phosphorus Bronze
Supply Chain
Factory Lead Time 60 Weeks
