1838277-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

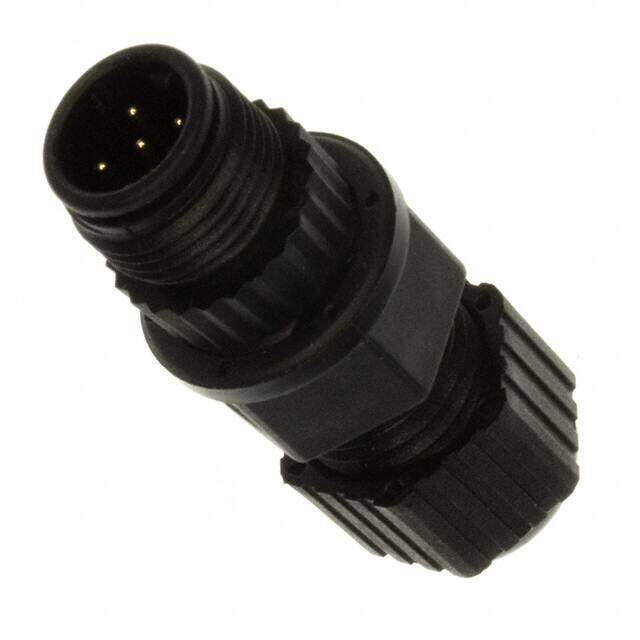

CONN PLUG MALE 5POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $15.22
Unit Price: USD $15.215042
≥1 USD $15.215042
≥10 USD $14.353814
≥100 USD $13.541336
≥500 USD $12.774845
≥1000 USD $12.051738
Inventory: 9132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -25°C~90°C
Packaging Bulk
Published 2011
Series M12
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 5
Color Black
Applications Automotive, Industrial
Voltage - Rated 60VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 5
Orientation Keyed
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Size - Insert M12-5
Contact Gender Male
Empty Shell NO
Operating Supply Voltage 500V
Backshell Type SOLID
ELV Compliant
Plating Nickel
Number of Ports 1
Max Voltage Rating (DC) 6.06kV
Preloaded Yes
Dimensions
Length 41.8mm
Contact Finish Thickness - Mating 5.90μin 0.150μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
