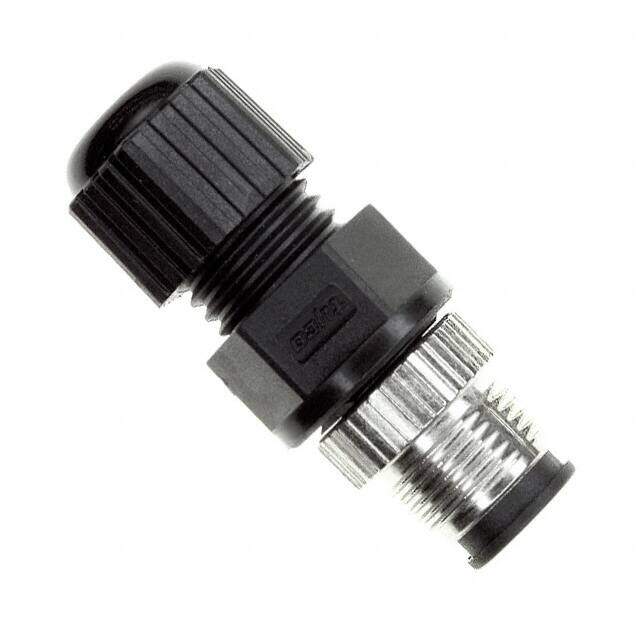

1838275-2 image
Favorite
1838275-2 image
Favorite
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG MALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $16.1
Unit Price: USD $16.0952
≥1 USD $16.0952
≥10 USD $15.75728
≥100 USD $15.338048
≥500 USD $14.583536
≥1000 USD $13.158816
≥3000 USD $13.07497
Inventory: 319
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)

Physical

Contact Material Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Polyamide (PA), Nylon, Glass Filled
Material Nylon
Body Material Nylon, Polyamide

Technical

Operating Temperature -25°C~90°C
Packaging Bulk
Published 2007
Series M12
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 4
Color Black
Applications Automotive, Industrial
Gender Receptacle
Voltage - Rated 250VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Size - Insert M12-4
Contact Gender Male
Operating Supply Voltage 500V
ELV Compliant
Plating Nickel
Number of Ports 1
Max Voltage Rating (DC) 250.25kV
Preloaded Yes

Dimensions

Length 41.8mm
Contact Finish Thickness - Mating 5.90μin 0.150μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, IP68, Waterproof
