TA7MSH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

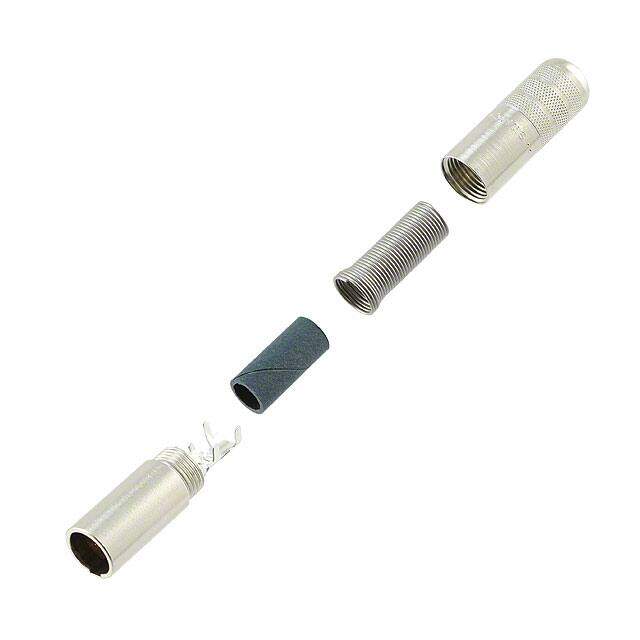

CONN RCPT MALE MINI XLR 7P SLDR
PDF
/
Buying Options
Total Price: USD $10.11
Unit Price: USD $10.1112
≥1 USD $10.1112
≥10 USD $8.96544
≥100 USD $8.62048
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Copper Alloy
Insert Material Thermoplastic
Backshell Material, Plating Copper Alloy, Nickel
Technical
Operating Temperature -55°C~85°C
Packaging Bulk
Published 2010
Series Tini Q-G? TA
JESD-609 Code e4
Feature Backshell, Cable Clamp, Ground
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Number of Positions 7
Applications Audio, Medical
Gender Male
Voltage - Rated 125VAC
HTS Code 8536.69.40.10
Fastening Type Latch Lock
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Shielding Shielded
Reach Compliance Code not_compliant
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert Mini XLR
Configuration 1X1 VERTICAL
Number of Ports 1
Number of Poles 7
Cable Opening 0.290 (7.37mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
