EN3P5MRAPC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

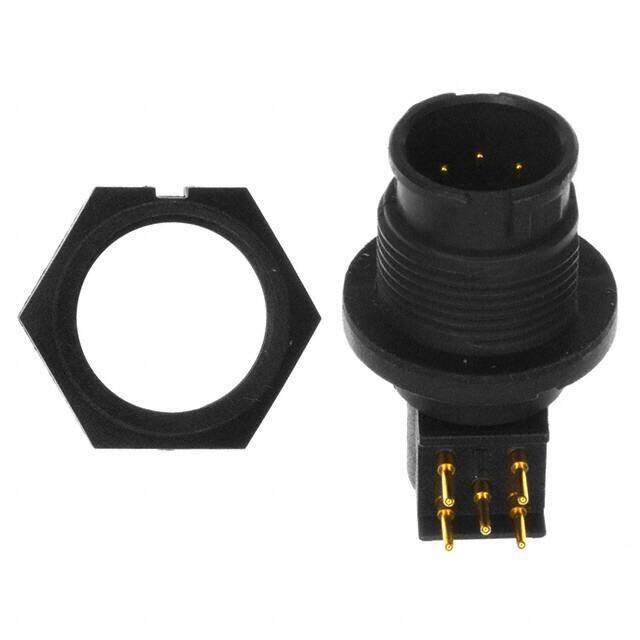

CONN RCPT MALE 5POS GOLD SOLDER
PDF
/
Inventory: 7575
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Shell Material Thermoplastic
Insert Material Elastomer
Technical
Operating Temperature -40°C~65°C
Packaging Bulk
Published 2000
Series EN3?
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Male Pins
Number of Positions 5
Color Black
Applications General Purpose, Instrumentation, Marine, Medical
Voltage - Rated 250VAC/DC
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Orientation Keyed
Shielding Unshielded
Ingress Protection IP66/68 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Ratings Dust Tight, IP66, Water Resistant, Waterproof
