EN3L2MX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

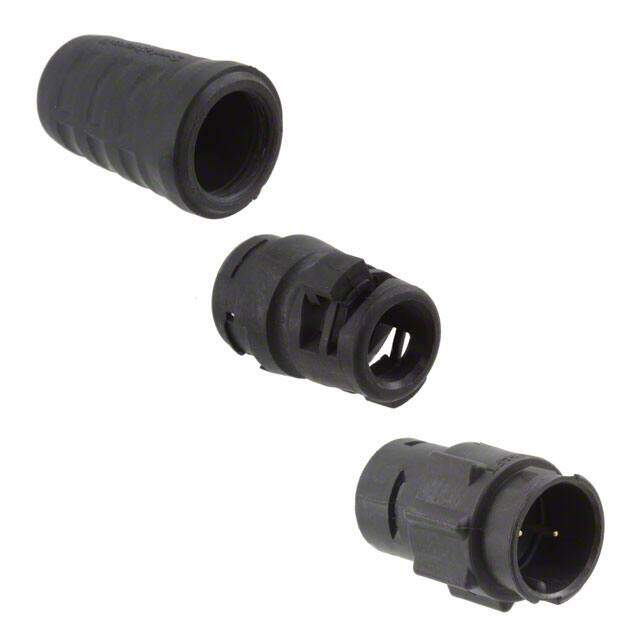

Standard Circular Connector IN-LINE 2P MALE
PDF
/
Buying Options
Total Price: USD $7.61
Unit Price: USD $7.612
≥1 USD $7.612
≥10 USD $6.84992
≥100 USD $6.453216
≥500 USD $6.2876
≥1000 USD $6.12216
≥3000 USD $5.460338
Inventory: 227
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP66, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.160 ~ 0.265 (4.06mm ~ 6.73mm)
Number of Ports 1
Contact Gender Male
Body Length or Diameter 0.7 inch
Reference Standard UL
Current Rating 7.5A
Ingress Protection IP66/68 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Orientation Keyed
Total Number of Contacts 2
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 250VAC/DC
Applications General Purpose, Instrumentation, Marine, Medical
Color Black
Number of Positions 2
Connector Type Receptacle, Male Pins
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Cable Clamp
Series EN3?
Published 1997
Packaging Bulk
Operating Temperature -40°C~65°C
Physical
Insert Material Elastomer
Shell Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
