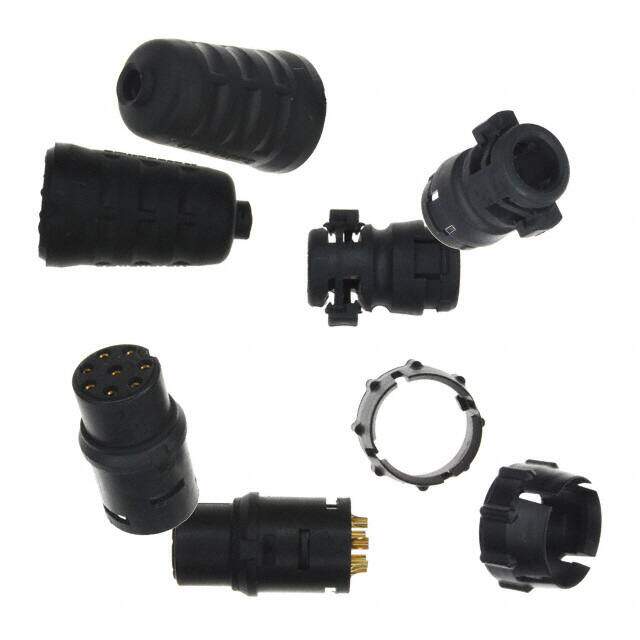

EN3C8FCXPKG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Connector
PDF
/
Inventory: 973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 8
Shell Material Thermoplastic
Insert Material Elastomer
Backshell Material, Plating Thermoplastic
Technical
Operating Temperature -40°C~65°C
Packaging Bulk
Published 2000
Series EN3?
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Crimp
Connector Type Plug, Female Sockets
Number of Positions 8
Max Operating Temperature 65°C
Min Operating Temperature -40°C
Color Black
Applications General Purpose, Instrumentation, Marine, Medical
Voltage - Rated 250VAC/DC
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Current Rating (Amps) 6.5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP66/68 - Dust Tight, Water Resistant, Waterproof
Current Rating 6.5A
Cable Opening 0.160 ~ 0.265 (4.06mm ~ 6.73mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP66, Water Resistant, Waterproof
