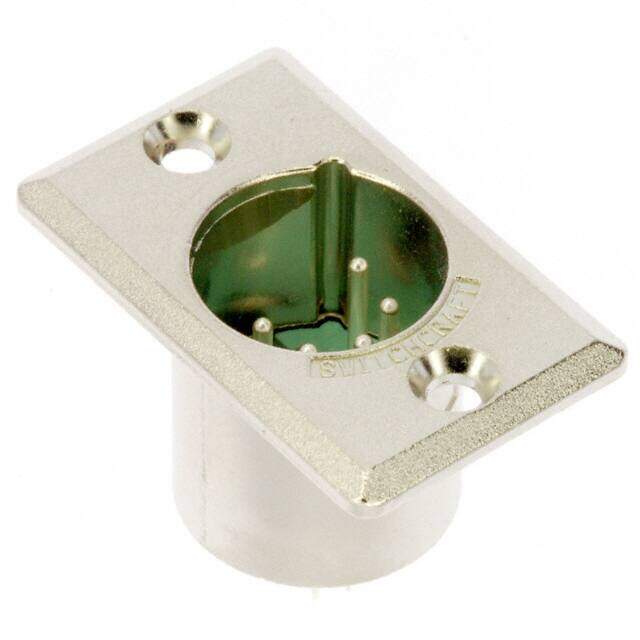

D5M
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT AUDIO 5POS MALE PNL MT
PDF
/
Buying Options
Total Price: USD $14.9
Unit Price: USD $14.8984
≥1 USD $14.8984
≥10 USD $13.04248
≥100 USD $12.479104
≥500 USD $12.424544
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Flanges, Panel
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Shell Material Zinc
Insert Material Polyester
Body Material Metal, Nickel
Technical
Packaging Bulk
Series Q-G? D
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 5
Applications Audio, Instrumentation
Gender Male
Voltage - Rated 125VAC
Additional Feature POLARIZED
Fastening Type Latch Lock
Voltage - Rated DC 125V
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Depth 36.9mm
Current Rating 7.5A
Shell Finish Nickel
Shell Size - Insert XLR
Number of Ports 1
Number of Poles 5
Dimensions
Diameter 18.9mm
Length 27mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
