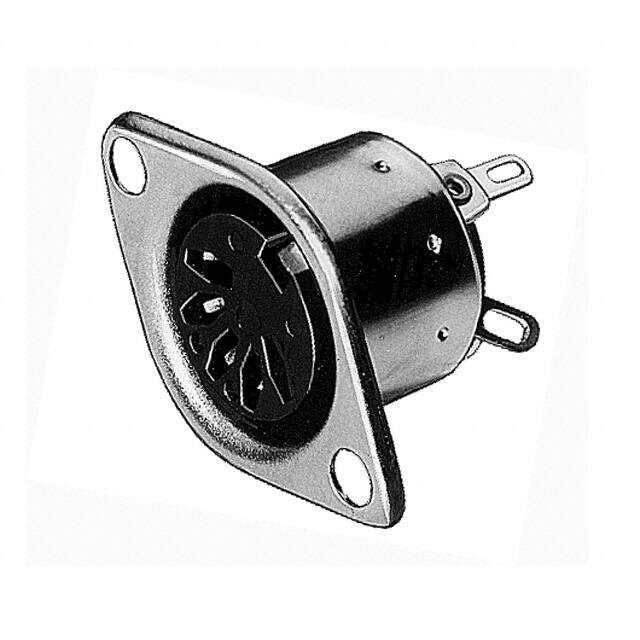

57GB5F image
Favorite
57GB5F image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE DIN 5POS SOLDER
PDF
/
Inventory: 5333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Technical

Contact Pitch Circle Diameter 7mm
EMI Shielded NO
Insertion Force-Max 8.0064 N
Number of Ports 1
Polarization Key POLAR PIN POSITION
Contact Style BELLOWED TYPE
Rated Current (Signal) 3A
Body Depth 0.476 inch
Body Breadth 0.748 inch
Reliability COMMERCIAL
Shell Size - Insert DIN 180 Degree
Current Rating 3A
Shielding Shielded
Orientation F
Total Number of Contacts 5
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory DIN Connectors
Fastening Type Push-Pull
Voltage - Rated 34VDC
Gender Female
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Ground
JESD-609 Code e3
Published 1998
Packaging Bulk

Physical

Insert Material Plastic
Shell Material Steel
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Nickel, Tin
