05DL5M
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

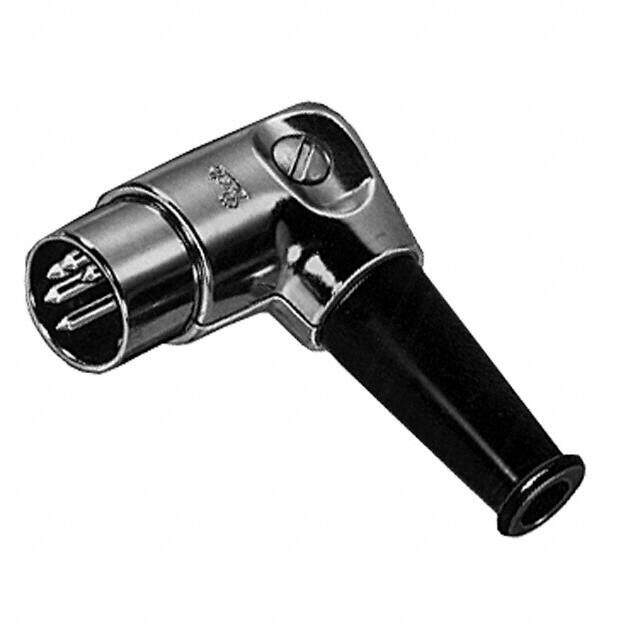

POLARIZED Circular Connector
PDF
/
Inventory: 6346
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Insert Material Plastic
Technical
Packaging Bulk
Published 1998
JESD-609 Code e3
Feature Backshell, Strain Relief
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 5
Color Silver
Gender Male
Voltage - Rated 34VDC
Additional Feature POLARIZED
Fastening Type Push-Pull
Subcategory DIN Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Option GENERAL PURPOSE
Total Number of Contacts 5
Current Rating 3A
Shell Finish Nickel
Shell Size - Insert DIN 180 Degree
Reliability COMMERCIAL
Body Length or Diameter 0.629 inch
Body Breadth 0.629 inch
Rated Current (Signal) 3A
Contact Style RND PIN-SKT
Polarization Key POLAR PIN POSITION
Number of Ports 1
Insertion Force-Max 8.0064 N
EMI Shielded NO
Contact Pitch Circle Diameter 7mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
