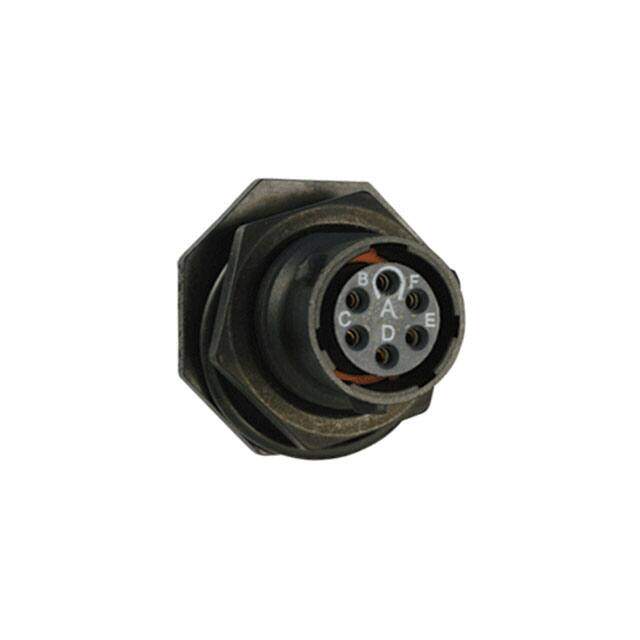

UTS710D6S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 6POS GOLD SOLDER
PDF
/
Inventory: 5277
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Polyamide (PA), Nylon
Insert Material Polychloroprene
Body Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series Trim Trio? UTS Hi Seal
Feature UV Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 6
Color Black
Applications Energy, Instrumentation, Lighting, Telecommunications
Gender Receptacle
Voltage - Rated 250V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 6
Orientation N (Normal)
Shielding Unshielded
Ingress Protection IP68/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 6A
Shell Size - Insert 10-6
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Environmental Characteristics CORROSION/MOISTURE RESISTANT
Dimensions
Contact Finish Thickness - Mating 16.0μin 0.41μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP68, Waterproof
