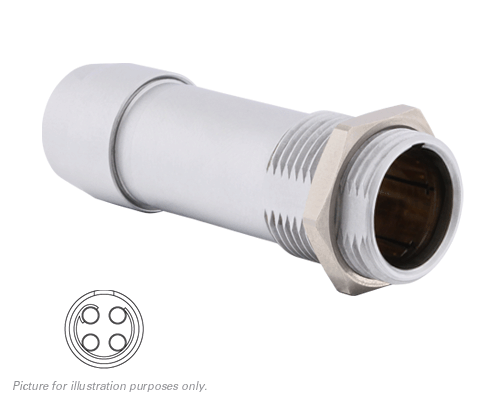

JBXSR3G04FSSDSR

SOURIAU-SUNBANK
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 4POS SOLDER CUP
PDF
/
Inventory: 7533
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line); Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Backshell Material, Plating Brass, Chrome over Nickel

Technical

Operating Temperature -40°C~125°C
Packaging Bulk
Series JBX
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Applications Industrial, Instrumentation, Medical, Telecommunications
Voltage - Rated 1100V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP40
Current Rating 25A
Shell Finish Chrome over Nickel
Shell Size - Insert 3

Dimensions

Contact Finish Thickness - Mating 19.7μin 0.50μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
