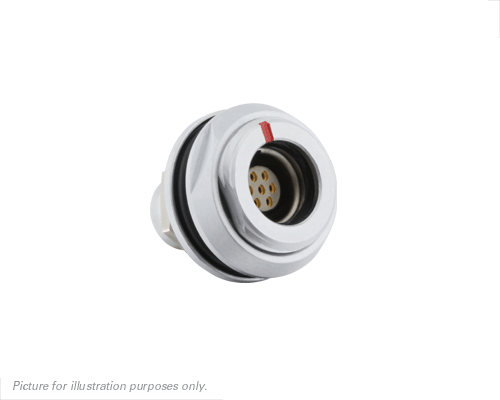

JBXHC0G07FSSDSR
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
JBX 7C SKT RECP REAR MNT
PDF
/
Buying Options
Total Price: USD $30.68
Unit Price: USD $30.681267
≥1 USD $30.681267
≥10 USD $28.944588
≥100 USD $27.306221
≥500 USD $25.760583
≥1000 USD $24.302434
Inventory: 9227
Minimum: 1
-
+
Technical Details
Physical
Shell Material Brass
Receptacle Mounting Type Rear Mount Panel
Nut Material Aluminium
Technical
Connector Type Receptacle
Contact Type Solder Cup
Shielding Yes
Function signal
Number of Contacts 7
Contact Gender Socket (Female)
Shell Size 0
Plating Nickel Chrome
Mating Cycles 5000
Coupling Push-Pull
Layout 7
Salt Spray (h) 48
Temperature Max. (°C) 125
Temperature Max. (F°) 257
Temperature Min. (°C) -40
Temperature Min. (°F) -40
Sealing Level (IP) 68
Environment RoHS,REACH
Standards UL,IEC,CSA
Current Breaking Capability No
Test voltage - UL (V) 320
Voltage UL (V) 320
Test Current - UL (A) 3
Number of cavility - signal contacts 7
Number of cavity diam 0.5mm 7
Dimensions
Width (in) 0.71
Length (in) 0.74
Height (in) 0.71
Height (mm) 18.00
Length (mm) 18.80
Width (mm) 18.00
