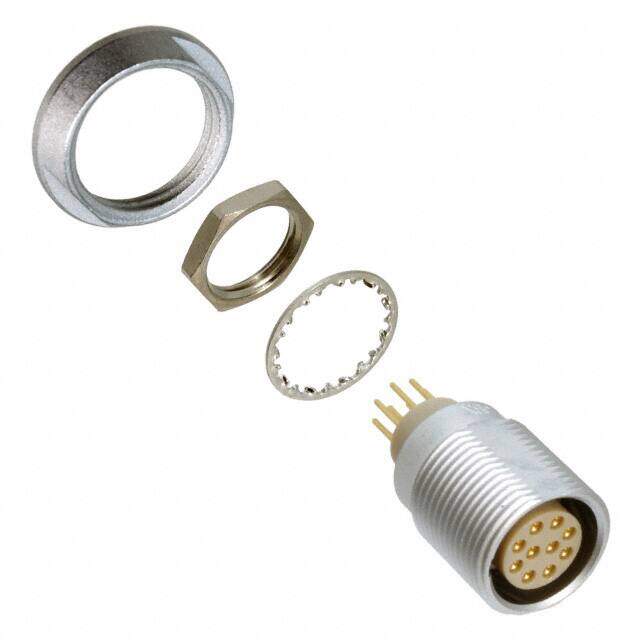

JBXEA2G10FPSDS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
The JBX series is a metal push-pull connector available in IP40 and IP68 sealing that is suited for indoor and outdoor applications such as medical, building automation, instrumentation, measurement, off-road, mining or telecom.JBX connectors guarantee a reliable and secure connection by using a push-pull locking mechanism that requires only two fingers to mate and unmate the connector. An audible and visual indicator will ensure a reliable locking, capable to resist to more than 1000 cycles.
PDF
/
Inventory: 5828
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Copper
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front or Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series JBX
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 10
Color Silver
Applications Industrial, Instrumentation, Medical, Telecommunications
Voltage - Rated 830V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP40
Current Rating 8A
Shell Finish Chrome over Nickel
Shell Size - Insert 2
Contact Gender Female
Max Current Rating 30A
Plating Chrome
Wire/Cable Gauge 24 AWG
Dimensions
Length 24mm
Contact Finish Thickness - Mating 19.7μin 0.50μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
