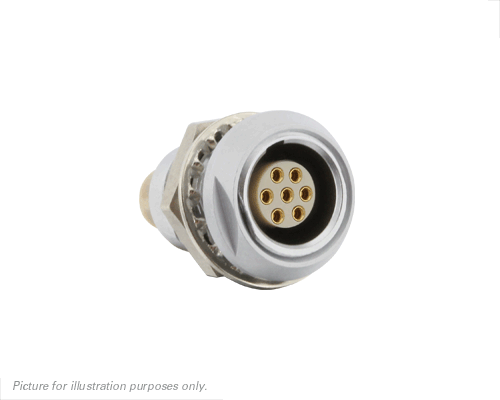

JBXEA0G07FSSDS
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
JBX 7C SKT DBL NUT RECP
PDF
/
Inventory: 8405
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width (mm) 12.00
Length (mm) 18.20
Height (mm) 12.00
Height (in) 0.47
Length (in) 0.72
Width (in) 0.47
Technical
Number of cavity diam 0.5mm 7
Number of cavility - signal contacts 7
Test Current - UL (A) 3
Voltage UL (V) 320
Test voltage - UL (V) 320
Current Breaking Capability No
Standards UL,IEC,CSA
Environment RoHS,REACH
Sealing Level (IP) 40
Temperature Min. (°F) -40
Temperature Min. (°C) -40
Temperature Max. (F°) 257
Temperature Max. (°C) 125
Salt Spray (h) 48
Layout 7
Coupling Push-Pull
Mating Cycles 5000
Plating Nickel Chrome
Shell Size 0
Contact Gender Socket (Female)
Number of Contacts 7
Function signal
Shielding Yes
Contact Type Solder Cup
Connector Type Receptacle
Physical
Nut Material Aluminium
Receptacle Mounting Type Double Nut (Rear & Front)
Shell Material Brass
