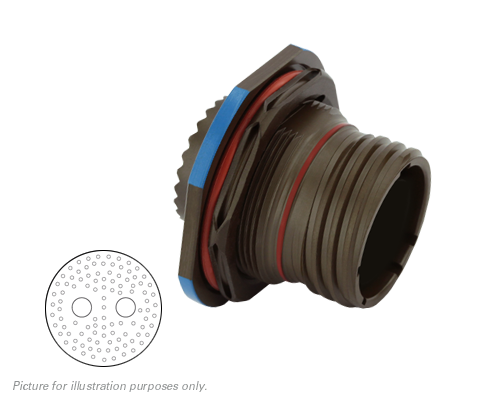

8D725W07PC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 99C 97#22D 2#8 PIN J/N
PDF
/
Inventory: 9732
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Receptacle Mounting Type Jam Nut Receptacle
Nut Material Aluminium
Technical
Connector Type Receptacle
Contact Type Crimp
Shielding Yes
Function signal
Contact Gender Pin (Male)
Shell Size 25
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 07
Salt Spray (h) 500
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #22D 97
Number of cavity #8 2
Dimensions
Width (in) 2.19
Length (in) 1.28
Height (in) 2.19
Height (mm) 55.60
Length (mm) 32.50
Width (mm) 55.60
