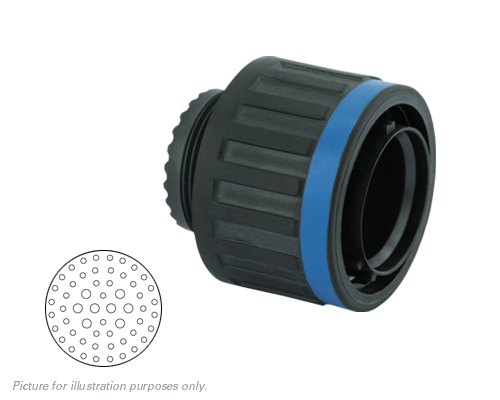

8D525X04PC image
Favorite
8D525X04PC image
Favorite

8D525X04PC

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 56C 48#20 8#16 PIN PLUG
PDF
/
Inventory: 6383
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Width (mm) 48.00
Length (mm) 31.00
Height (mm) 48.00
Height (in) 1.89
Length (in) 1.22
Width (in) 1.89

Technical

#16 contact rating (A) 13.00
Number of cavity #16 8
#20 contact rating (A) 7.30
Number of cavity #20 48
Plug Type Straight Plug
Environment RoHS
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 347
Temperature Max. (°C) 175
Salt Spray (h) 2000
Layout 04
Coupling Thread
Mating Cycles 500
Shell Size 25
Contact Gender Pin (Male)
Number of Contacts 56
Function signal
Shielding No
Contact Type Crimp
Connector Type Plug

Physical

Insert Material Peek
Shell Material Composite
Contact Plating Gold
