8D525M07PN
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

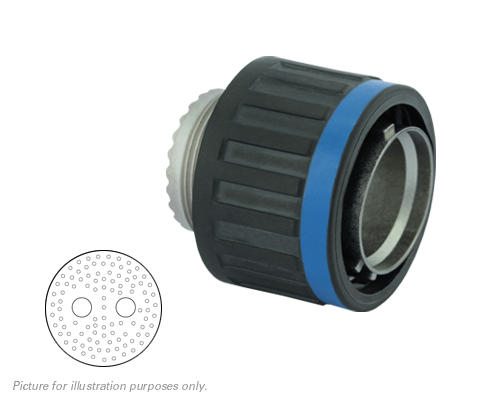

8D 99C 97#22D 2#8 PIN PLUG
PDF
/
Inventory: 9243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Shell Material Composite
Insert Material Thermoplastic
Technical
Operating Temperature -65°C~200°C
Packaging Bulk
Series MIL-DTL-38999 Series III, 8D
Feature Coupling Nut
Part Status Active
Termination Crimp
Connector Type Plug, Male Pins
Number of Positions 99 (97 + 2 Triax)
Applications Aviation, Marine, Military
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 5A 45A
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert 25-7
