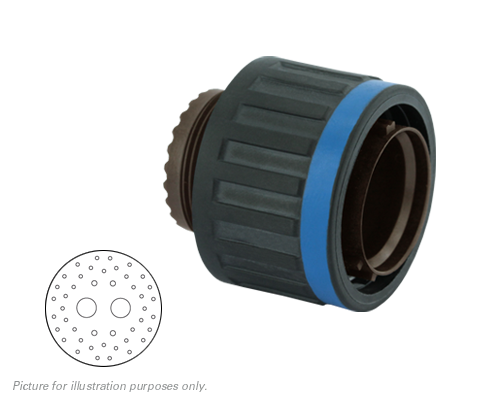

8D525J46PC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 46C MIXED PIN PLUG
PDF
/
Inventory: 9775
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Composite
Insert Material Peek
Technical
Connector Type Plug
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 46
Contact Gender Pin (Male)
Shell Size 25
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 46
Salt Spray (h) 2000
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Plug Type Straight Plug
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #20 40
#20 contact rating (A) 7.30
Number of cavity #16 4
#16 contact rating (A) 13.00
Number of cavity #8 2
Dimensions
Width (in) 1.89
Length (in) 1.22
Height (in) 1.89
Height (mm) 48.00
Length (mm) 31.00
Width (mm) 48.00
