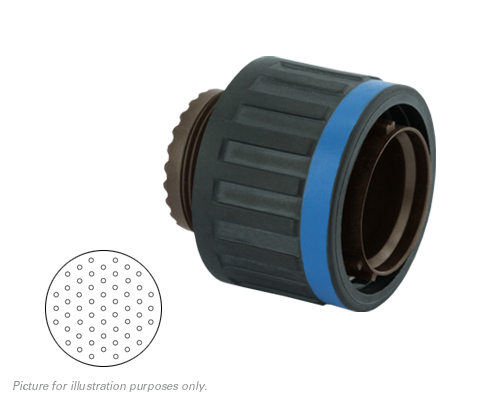

8D523J55AB
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 55C 55#20 PIN PLUG
PDF
/
Buying Options
Total Price: USD $122.66
Unit Price: USD $122.658116
≥1 USD $122.658116
≥10 USD $115.715198
≥100 USD $109.165283
≥500 USD $102.986123
≥1000 USD $97.156721
Inventory: 5047
Minimum: 1
-
+
Technical Details
Dimensions
Width (mm) 44.90
Length (mm) 31.00
Height (mm) 44.90
Height (in) 1.77
Length (in) 1.22
Width (in) 1.77
Technical
#20 contact rating (A) 7.30
Number of cavity #20 55
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Plug Type Straight Plug
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 347
Temperature Max. (°C) 175
Salt Spray (h) 2000
Layout 55
Coupling Thread
Mating Cycles 500
Plating Cadmium
Shell Size 23
Contact Gender Pin (Male)
Number of Contacts 55
Function signal
Shielding Yes
Connector Type Plug
Physical
Insert Material Peek
Shell Material Composite
