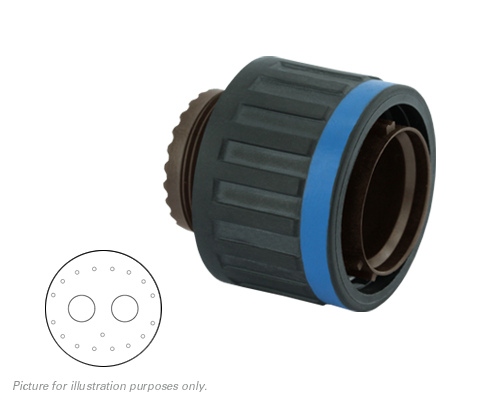

8D521J77AN image
Favorite
8D521J77AN image
Favorite

8D521J77AN

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 19C 17#22D 2#8 PIN PLUG
PDF
/
Inventory: 7549
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Shell Material Composite
Insert Material Peek

Technical

Connector Type Plug
Shielding Yes
Function signal
Number of Contacts 19
Contact Gender Pin (Male)
Shell Size 21
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 77
Salt Spray (h) 2000
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1300
Plug Type Straight Plug
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #22D 17
Number of cavity #8 2

Dimensions

Width (in) 1.64
Length (in) 1.22
Height (in) 1.64
Height (mm) 41.70
Length (mm) 31.00
Width (mm) 41.70
