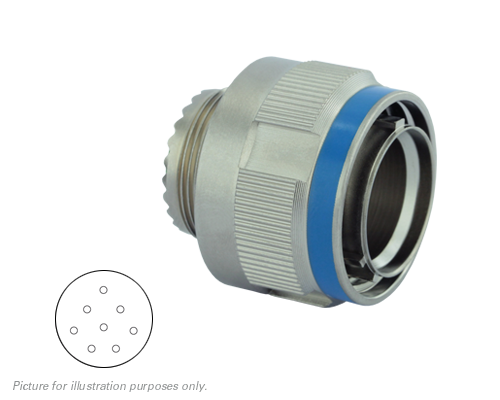

8D517K08PE
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 8C 8#16 PIN PLUG
PDF
/
Inventory: 7808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Stainless Steel
Insert Material Peek
Technical
Connector Type Plug
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 8
Contact Gender Pin (Male)
Shell Size 17
Plating Passivated
Mating Cycles 500
Coupling Thread
Layout 08
Salt Spray (h) 500
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 2300
Environment RoHS
Plug Type Straight Plug
Number of cavity #16 8
#16 contact rating (A) 13.00
Dimensions
Width (in) 1.41
Length (in) 1.22
Height (in) 1.41
Height (mm) 35.70
Length (mm) 31.00
Width (mm) 35.70
