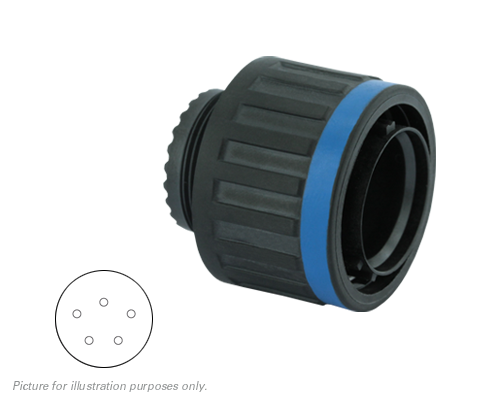

8D515X05PE

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 5C 5#16 PIN PLUG
PDF
/
Inventory: 4552
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Width (mm) 32.50
Length (mm) 31.00
Height (mm) 32.50
Height (in) 1.28
Length (in) 1.22
Width (in) 1.28

Technical

#16 contact rating (A) 13.00
Number of cavity #16 5
Plug Type Straight Plug
Environment RoHS
Vrms (Sea Level) 2300
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 347
Temperature Max. (°C) 175
Salt Spray (h) 2000
Layout 05
Coupling Thread
Mating Cycles 500
Shell Size 15
Contact Gender Pin (Male)
Number of Contacts 5
Function signal
Shielding No
Contact Type Crimp
Connector Type Plug

Physical

Insert Material Peek
Shell Material Composite
Contact Plating Gold
