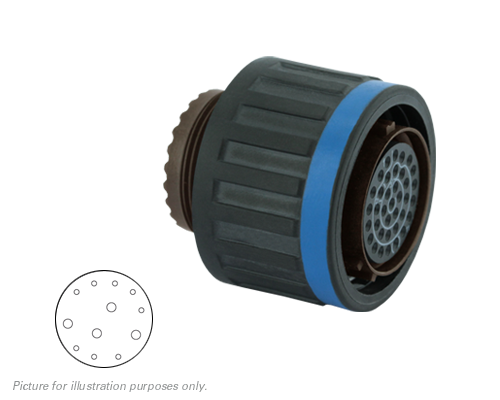

8D515J97PN
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 12C 8#20 4#16 PIN PLUG
PDF
/
Inventory: 8748
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width (mm) 32.50
Length (mm) 31.00
Height (mm) 32.50
Height (in) 1.28
Length (in) 1.22
Width (in) 1.28
Technical
#16 contact rating (A) 13.00
Number of cavity #16 4
#20 contact rating (A) 7.30
Number of cavity #20 8
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Plug Type Straight Plug
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 347
Temperature Max. (°C) 175
Salt Spray (h) 2000
Layout 97
Coupling Thread
Mating Cycles 500
Plating Cadmium
Shell Size 15
Contact Gender Pin (Male)
Number of Contacts 12
Function signal
Shielding Yes
Contact Type Crimp
Connector Type Plug
Physical
Insert Material Peek
Shell Material Composite
Contact Plating Gold
