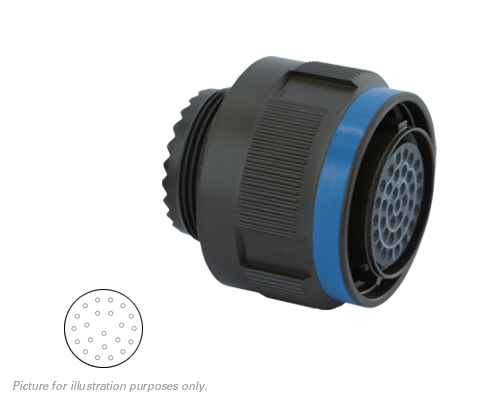

8D513Z35SD image
Favorite
8D513Z35SD image
Favorite

8D513Z35SD

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 22C 22#22D SKT PLUG
PDF
/
Inventory: 3490
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Plating Gold
Shell Material Aluminium
Insert Material Peek

Technical

Connector Type Plug
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 22
Contact Gender Socket (Female)
Shell Size 13
Plating Black Zinc Nickel
Mating Cycles 500
Coupling Thread
Layout 35
Salt Spray (h) 500
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1300
Environment RoHS
Plug Type Straight Plug
Plating detail Zinc nickel (conductive) -65°C to +200°C
Number of cavity #22D 22

Dimensions

Width (in) 1.16
Length (in) 1.16
Height (in) 1.16
Height (mm) 29.40
Length (mm) 29.40
Width (mm) 29.40
